Serviced by GCE
KLA 0133889-000
Stage Controller, Equipe
Compatibility
KLA CD-SEM (8100XP/8250)
Condition
Refurbished, fully tested, and on-tool verified

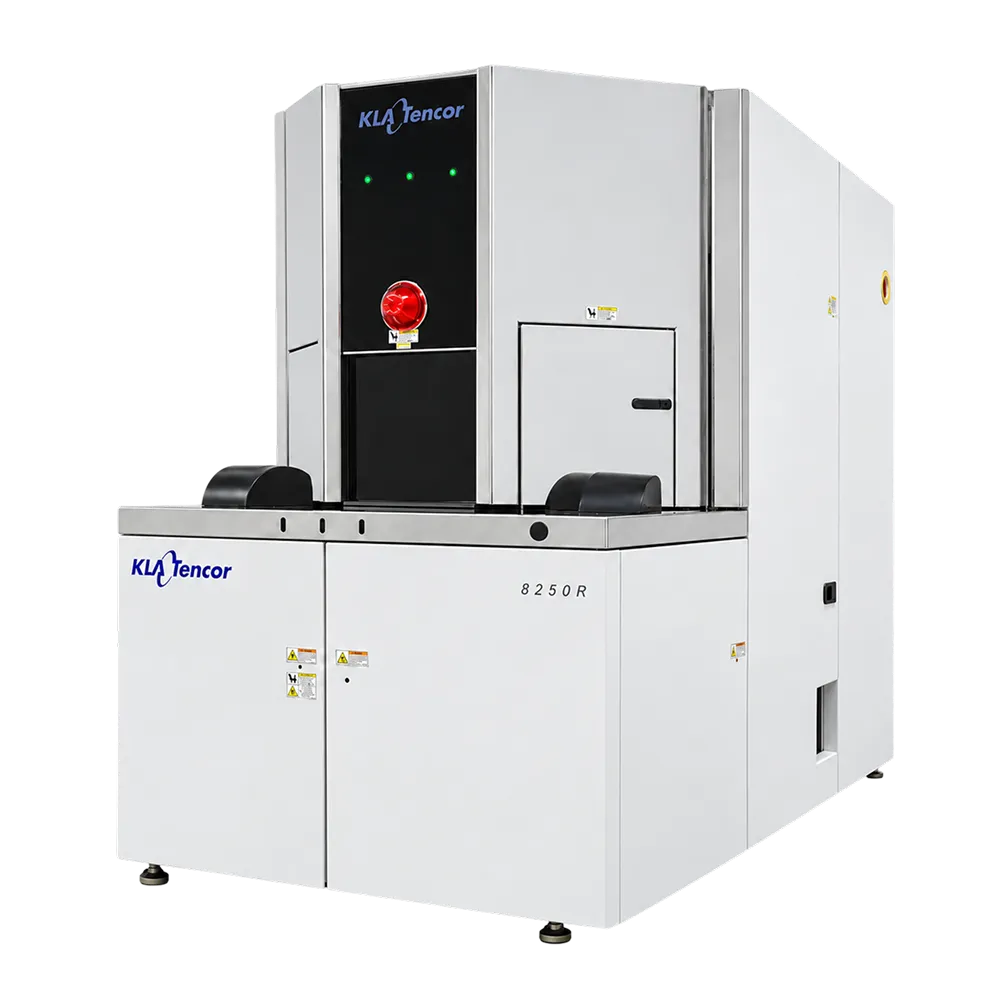

KLA-Tencor 8250R CD-SEM
KLA-Tencor 8250R CD-SEM pairs a laser-guided stage accurate to 1 µm with integrated reticle handling, measuring 30 nm features at up to 55 wafers per hour.
Specifications
Brand
KLA
Model
CD-SEM 8250R
Model Year
2005
Category
E-Beam Metrology
Serial Number
Several
Reticle size (inches)
5–6
Resolution
4
Throughput (WPH 8")
55
Wafer Sizes
3", 4", 6", 8"
Wafer types
Si, SiC, GaN, GaAs, InP, Sapphire, Quartz
Wafer Loading Stations
1–2
Reticle Loading Stations
1–2
Feature Size (nm)
30
Resolution (nm)
4
Magnification (kX)
2.34–400
Stage Accuracy (um)
1 (laser guided)
Accelerating Voltage (kV)
0.4–1.5
Operating System
Win NT/XP
Schottky Electron source
Yes
Size/Type Mix & Match on the Fly
Yes
Configuration / Reconfiguration
What GCE can adapt on this system.
This isn't a fixed listing. We reconfigure the tool for the process you're actually going to run — a different wafer size, a different application, a substrate the previous owner never used. Every system is refurbished to OEM spec first; the configuration work is where we match it to your line.
Wafer size
reconfigure across
3", 4", 6", 8"
Application
configured for
KLA-Tencor 8250R CD-SEM
Compound-semiconductor substrates
SiC, GaN, GaAs, InP, sapphire, quartz, where the platform supports it.
Spare Parts
Spare parts for this system
Serviced by GCE

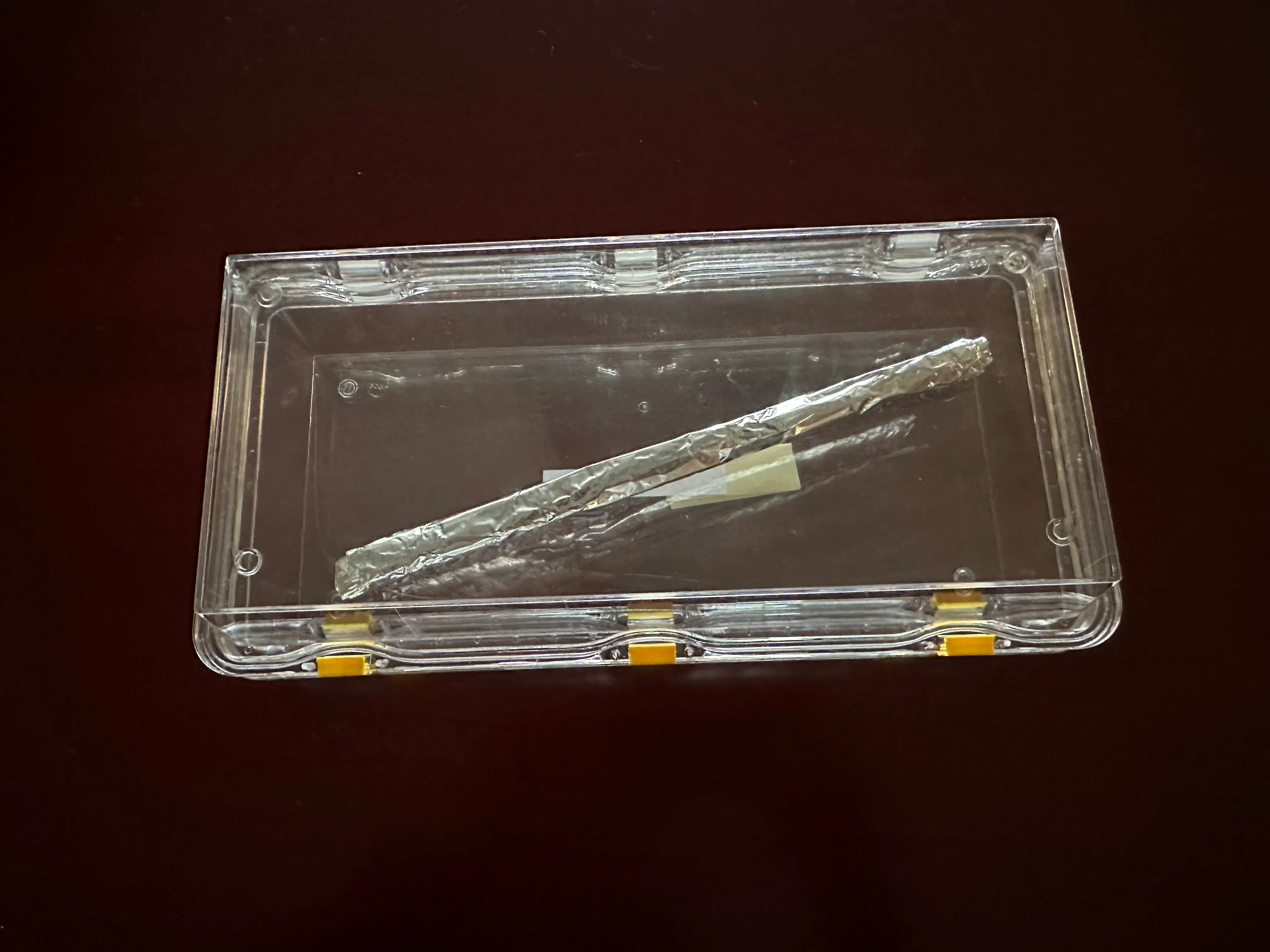

KLA 0145906-001
Aperture Strip Assembly, 14 holes
Compatibility
KLA CD-SEM (8100XP/8250)
Condition
New
Serviced by GCE
KLA 0723-2024-001
IP Controller Interface Kit (with new controller)
Compatibility
KLA CD-SEM (8100XP/8250)
Condition
New
Serviced by GCE
KLA 130-00679-000
Feedthrough
Compatibility
KLA CD-SEM (8100XP/8250)
Condition
Refurbished, fully tested, and on-tool verified
Serviced by GCE
KLA 371-07734-000
Scintillator
Compatibility
KLA CD-SEM (8100XP/8250)
Condition
New
Serviced by GCE

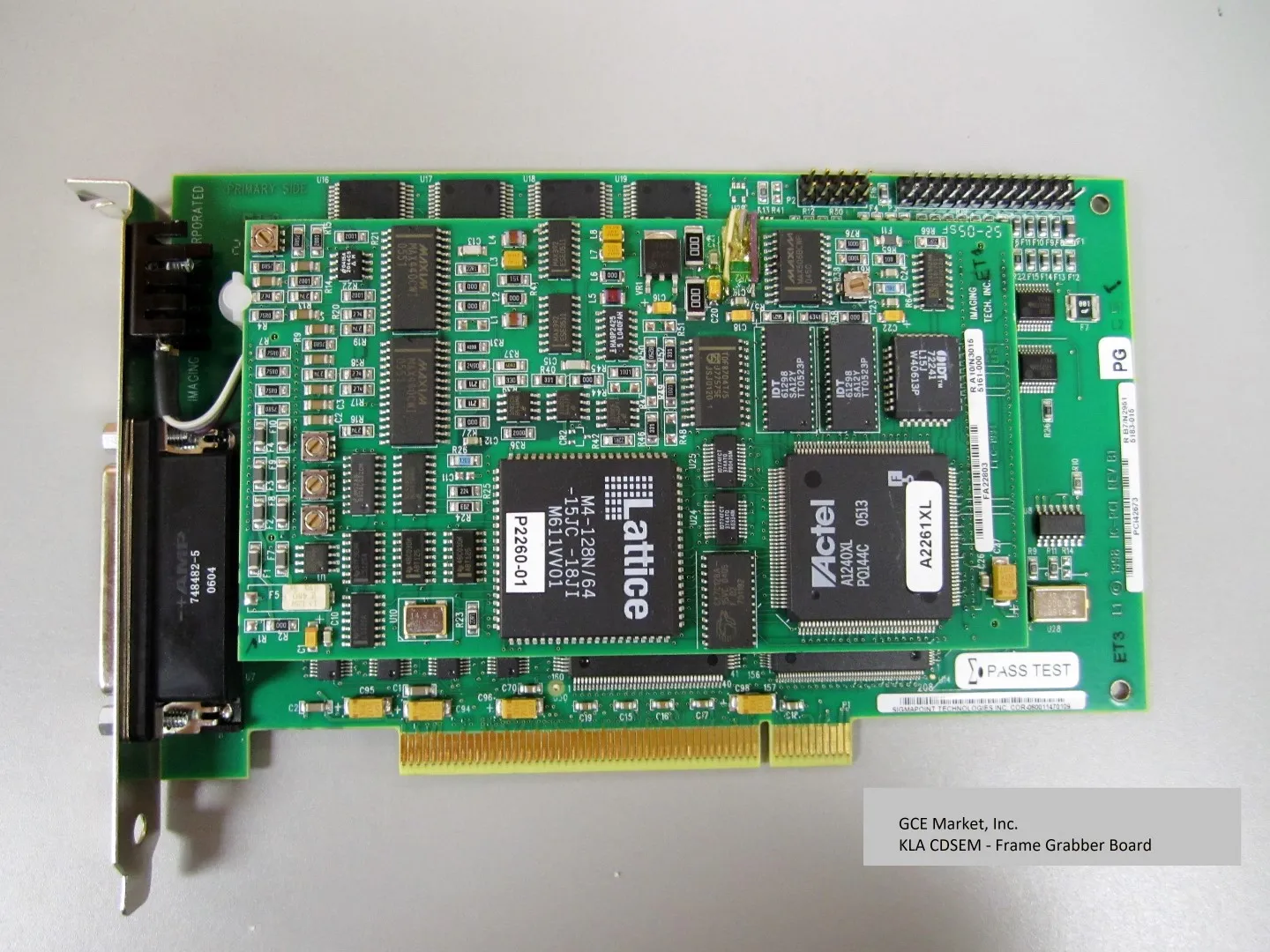

KLA 460-15018-000
Image / Frame Grabber PCB
Compatibility
KLA CD-SEM (8100XP/8250)
Condition
Refurbished, fully tested, and on-tool verified
Serviced by GCE

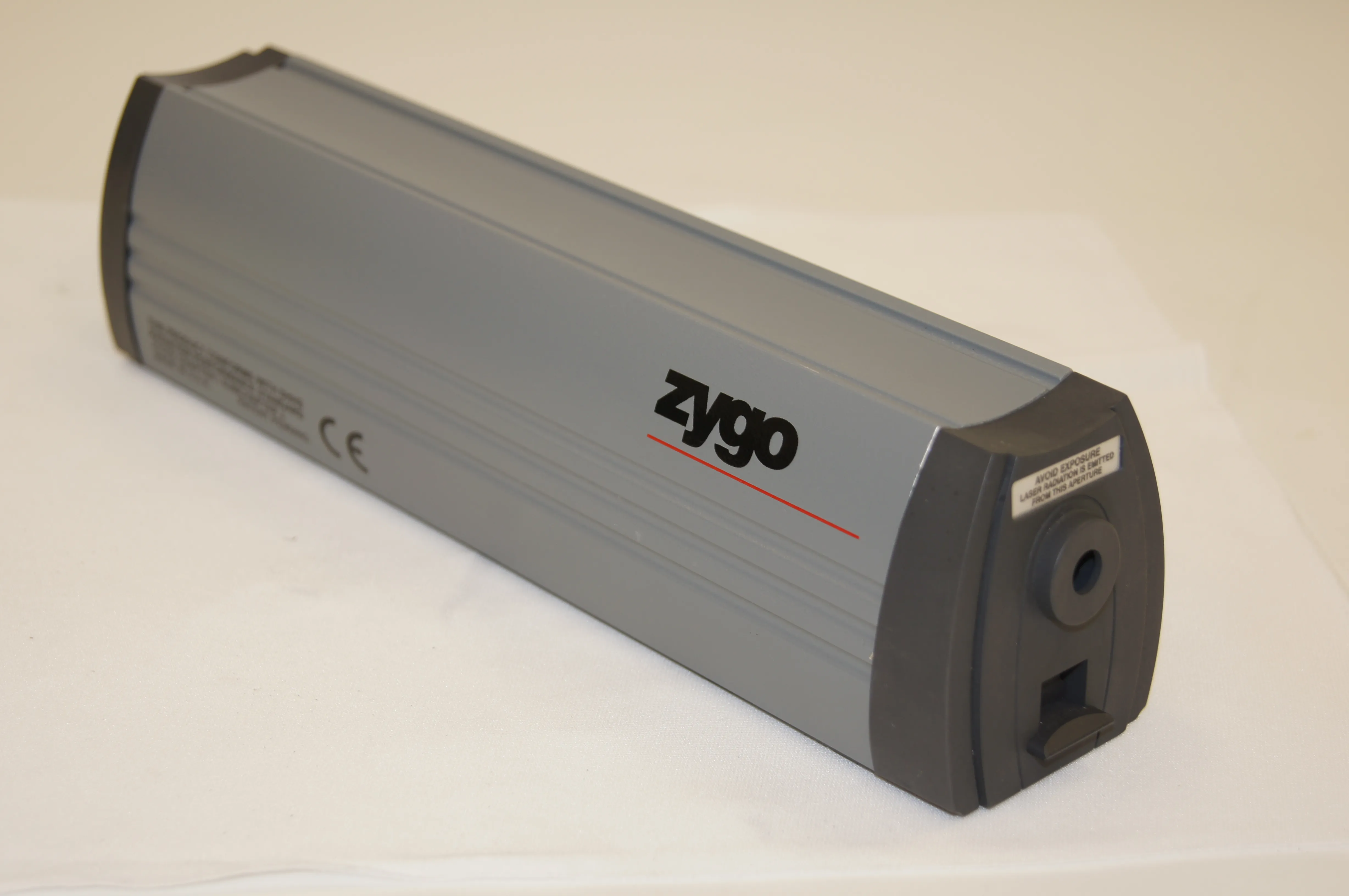

KLA 471-12148-000
Zygo 7705, Laser Head
Compatibility
KLA CD-SEM (8100XP/8250)
Condition
New
Serviced by GCE
KLA 720-02841-500
Stage Motor, Brushed
Compatibility
KLA CD-SEM (8100XP/8250)
Condition
Refurbished, fully tested, and on-tool verified
Request this system.
In stock, refurbished to OEM spec, and demo-ready on our own line. Ask for a quote, or schedule a demo and watch it run before you commit — no obligation.
