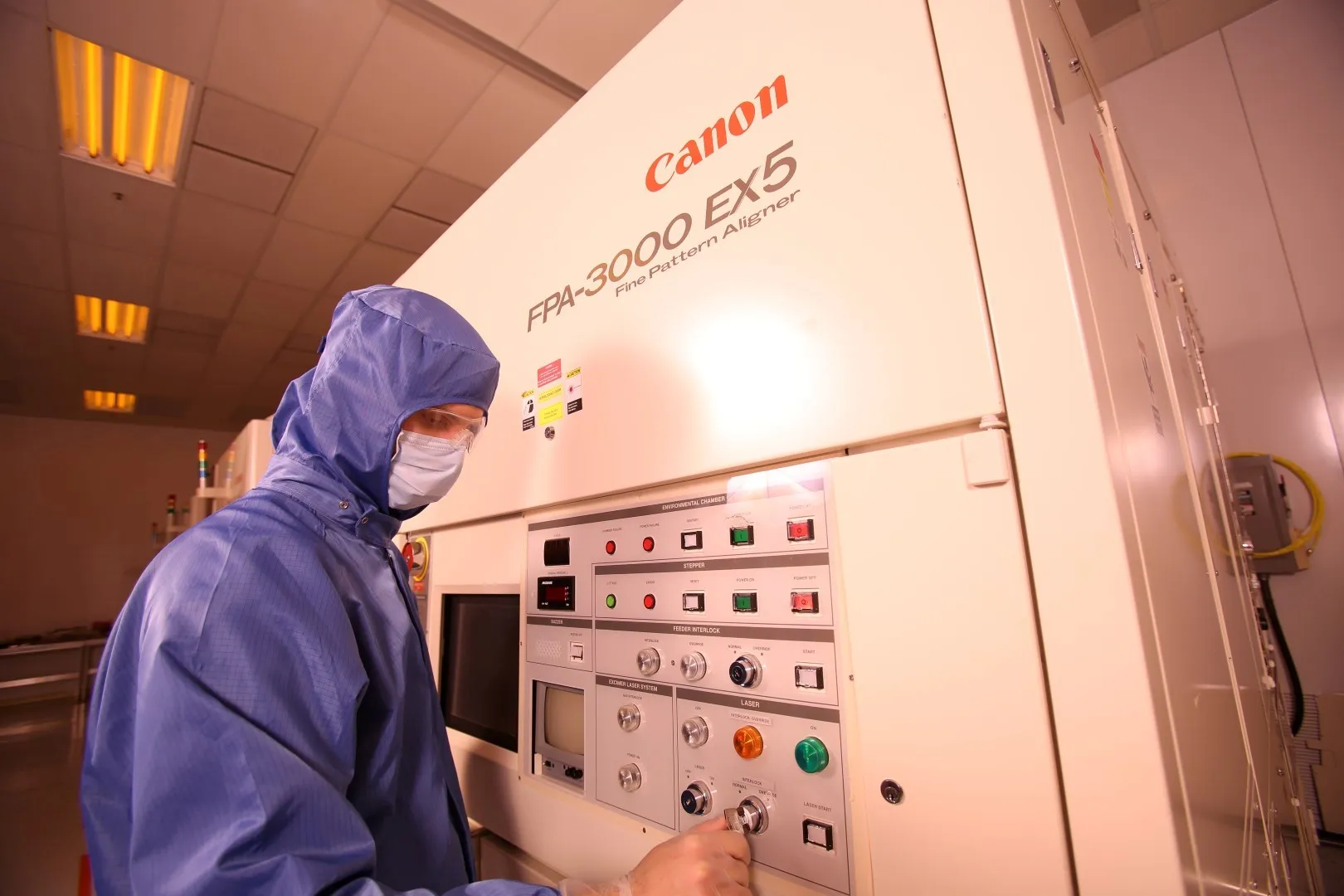

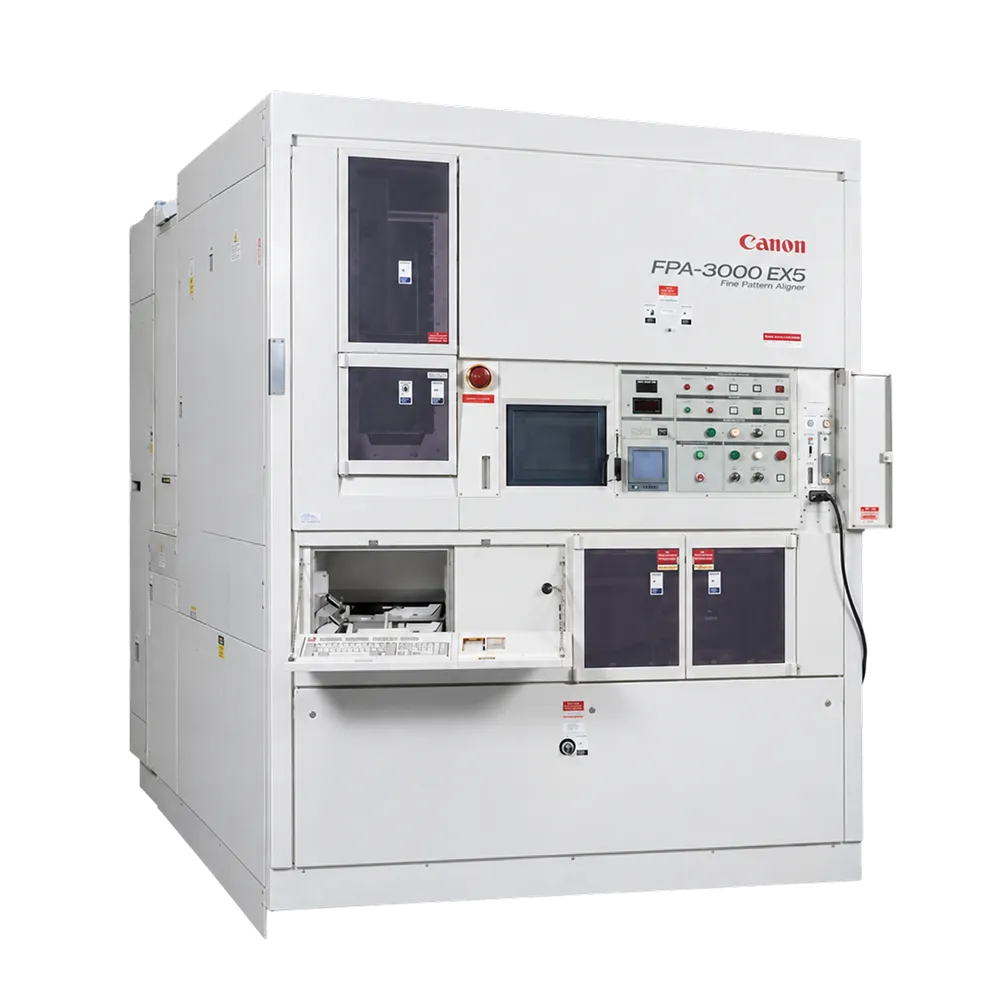

Canon FPA-3000 EX5 Wafer Stepper
Canon FPA-3000 EX5 is a 248 nm KrF stepper resolving 220 nm at 0.45 to 0.63 NA, running up to 85 wafers per hour over a 22 x 22 mm field.

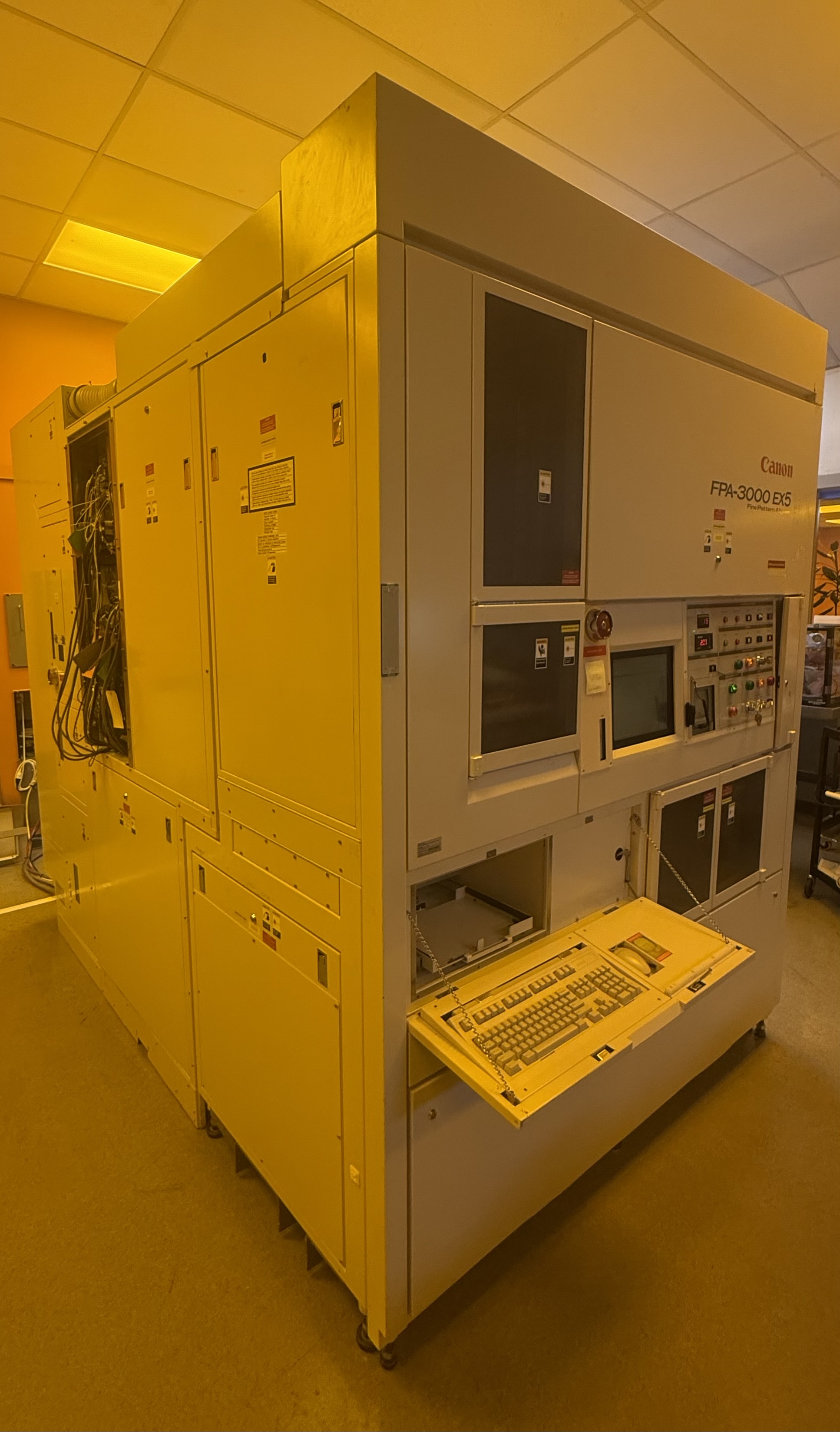

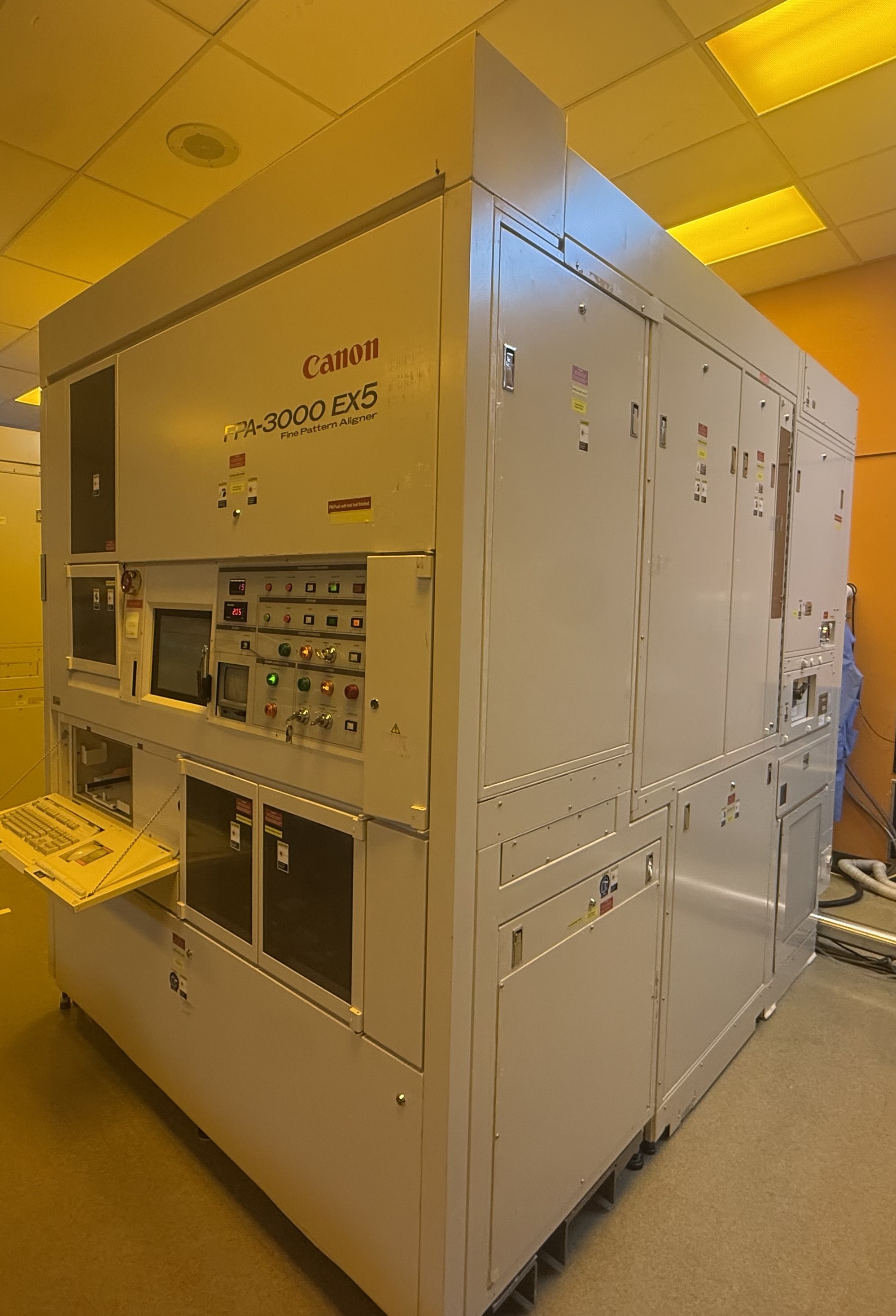

This stepper is installed and powered up at our facility in Blackwood, NJ, USA. Our team is currently going through start-up and operational checks. Light Source KrF Excimer Laser CYMER/ELS-53XX (Not Included).
Specifications
Brand
Canon
Model
FPA-3000 EX5
Model Year
1998
Category
Photolithography
Serial Number
8095011
Illumination Source
248
Projection Ratio
5:1
Numerical Aperture
0.45–0.63
Field
22 x 22
Intensity (≥W/m²)
3,500
Uniformity (≤%)
1.0
Alignment Accuracy (<nm)
45
Stage Type
Flat
Reticle size (inches)
6
Resolution
220
Throughput (WPH 8")
85
Wafer Sizes
4", 6", 8"
Resolution (nm)
220
Configuration / Reconfiguration
What GCE can adapt on this system.
This isn't a fixed listing. We reconfigure the tool for the process you're actually going to run — a different wafer size, a different application, a substrate the previous owner never used. Every system is refurbished to OEM spec first; the configuration work is where we match it to your line.
Wafer size
reconfigure across
4", 6", 8"
Application
configured for
Canon FPA-3000 EX5 Wafer Stepper
Compound-semiconductor substrates
SiC, GaN, GaAs, InP, sapphire, quartz, where the platform supports it.
