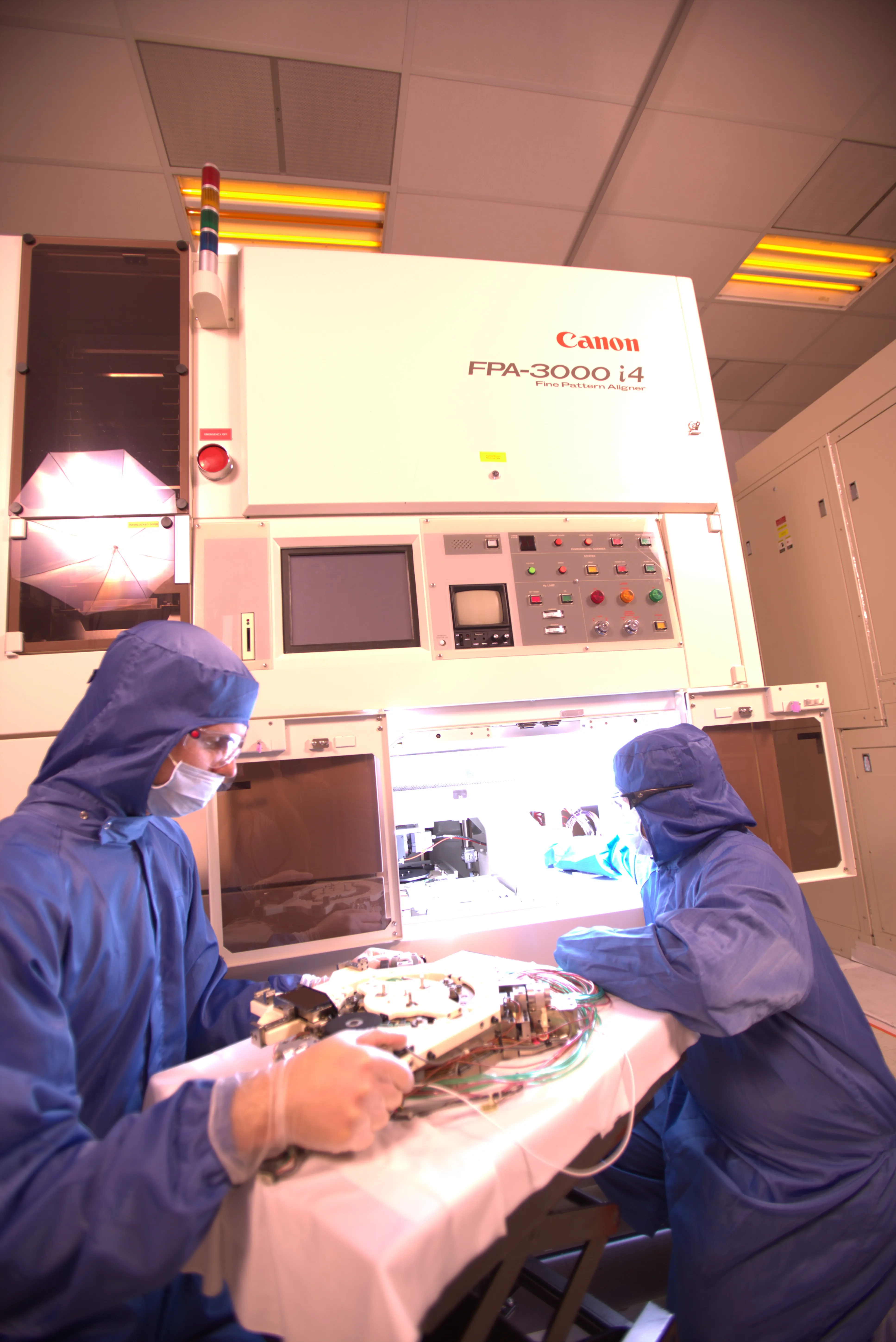

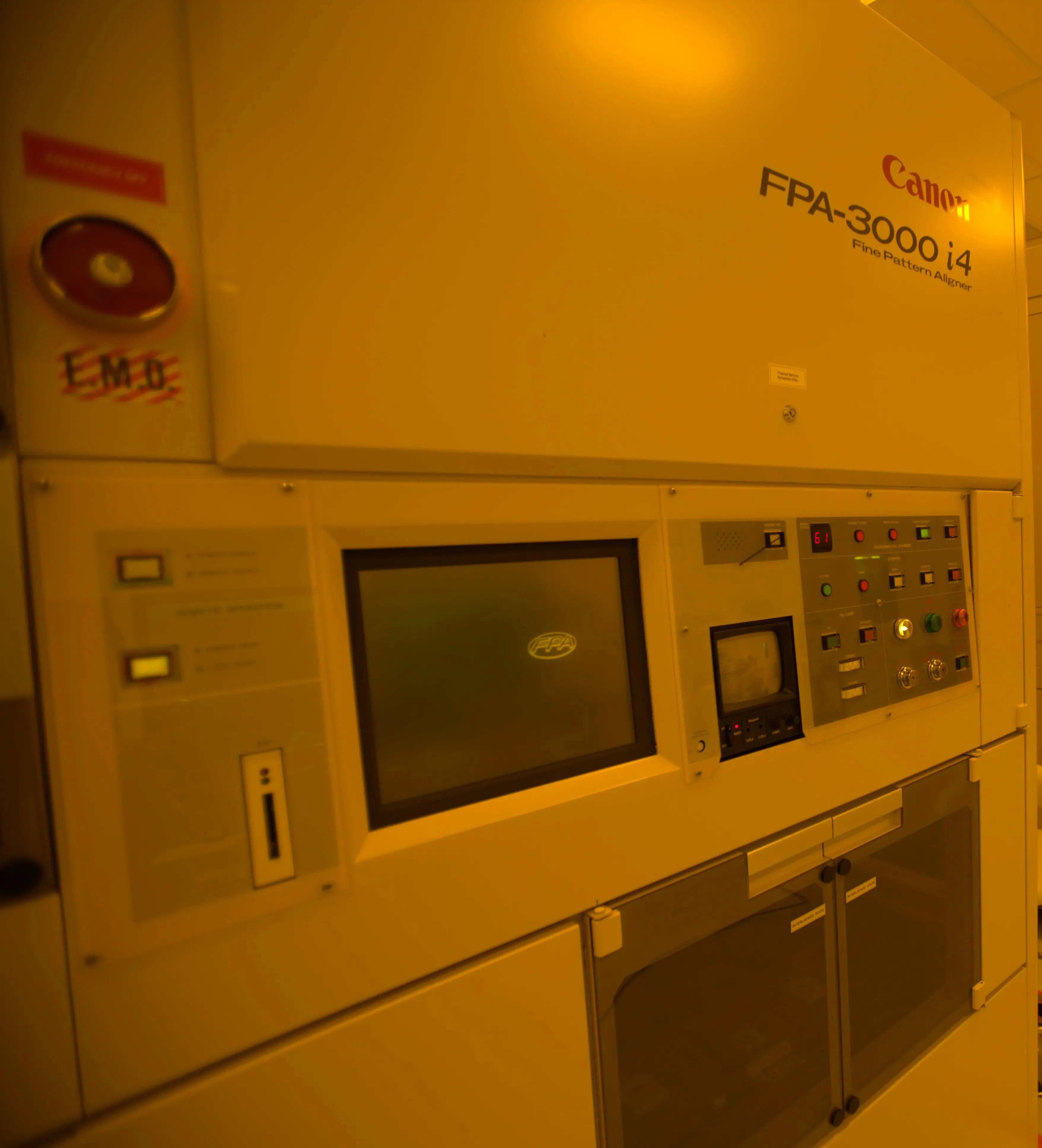

Canon FPA-3000 i4 Wafer Stepper
Canon FPA-3000 i4 is a 365 nm i-line stepper resolving 350 nm at 0.45 to 0.63 NA, running up to 59 wafers per hour on an ABS stage over a 22 x 22 mm field.

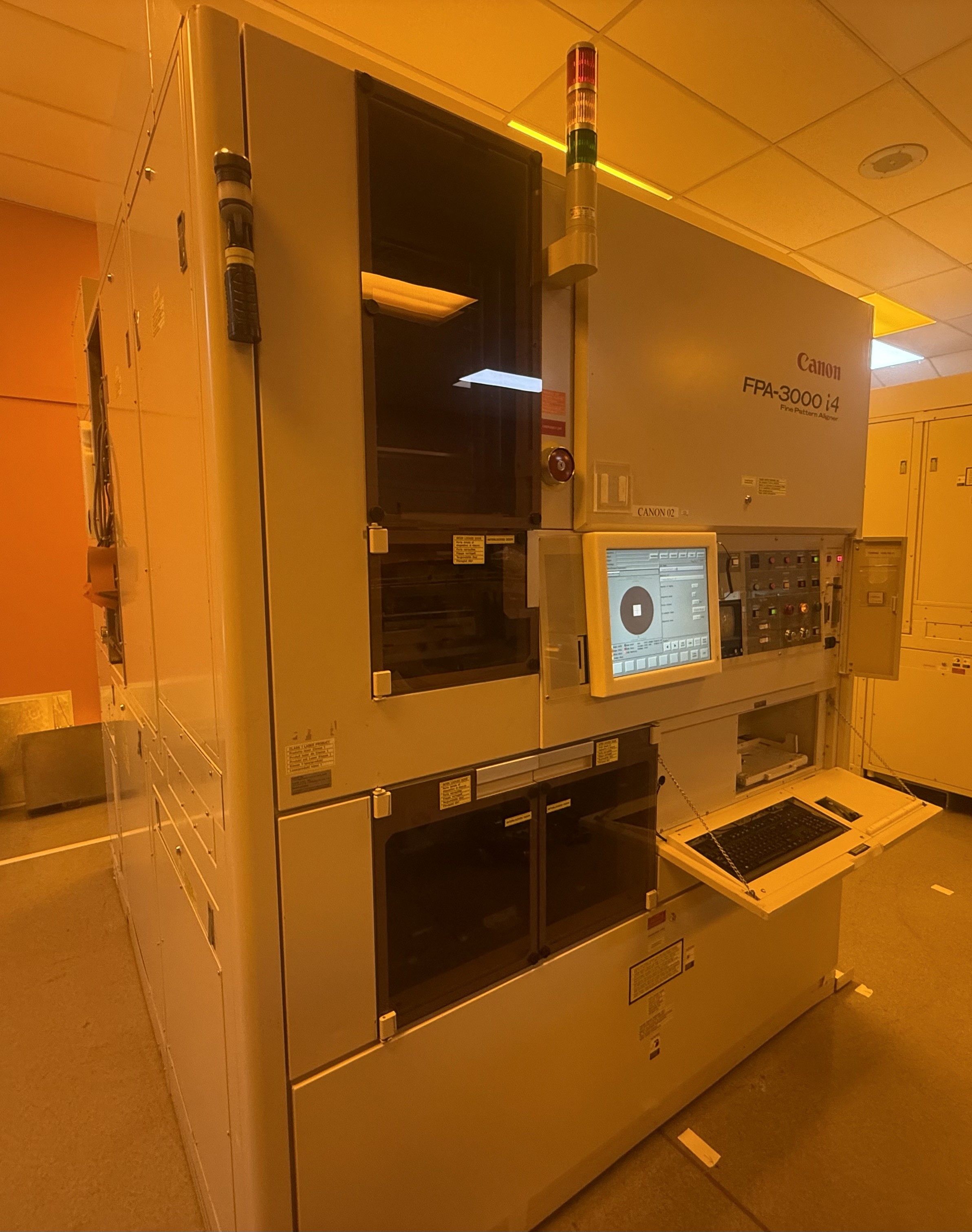

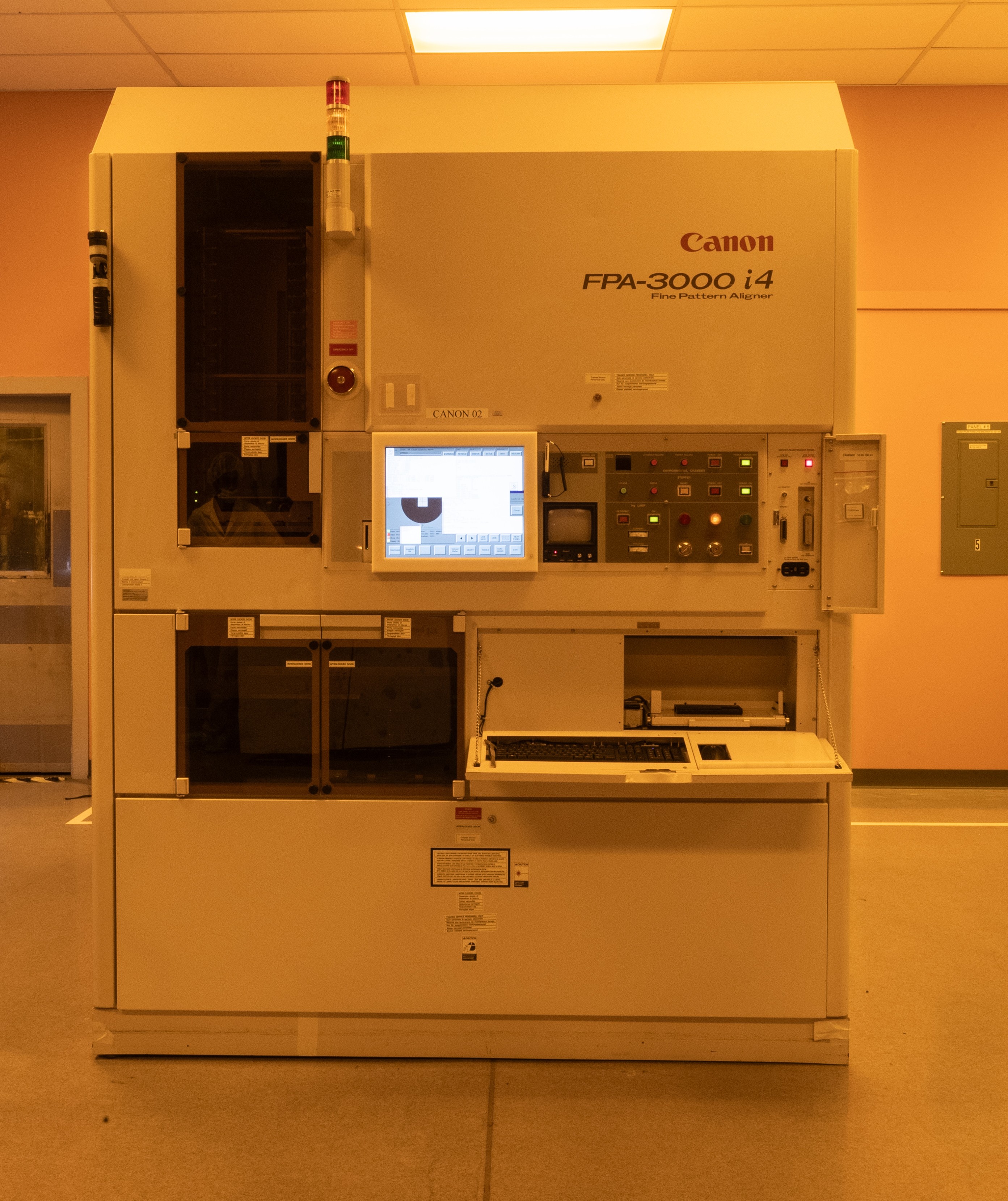

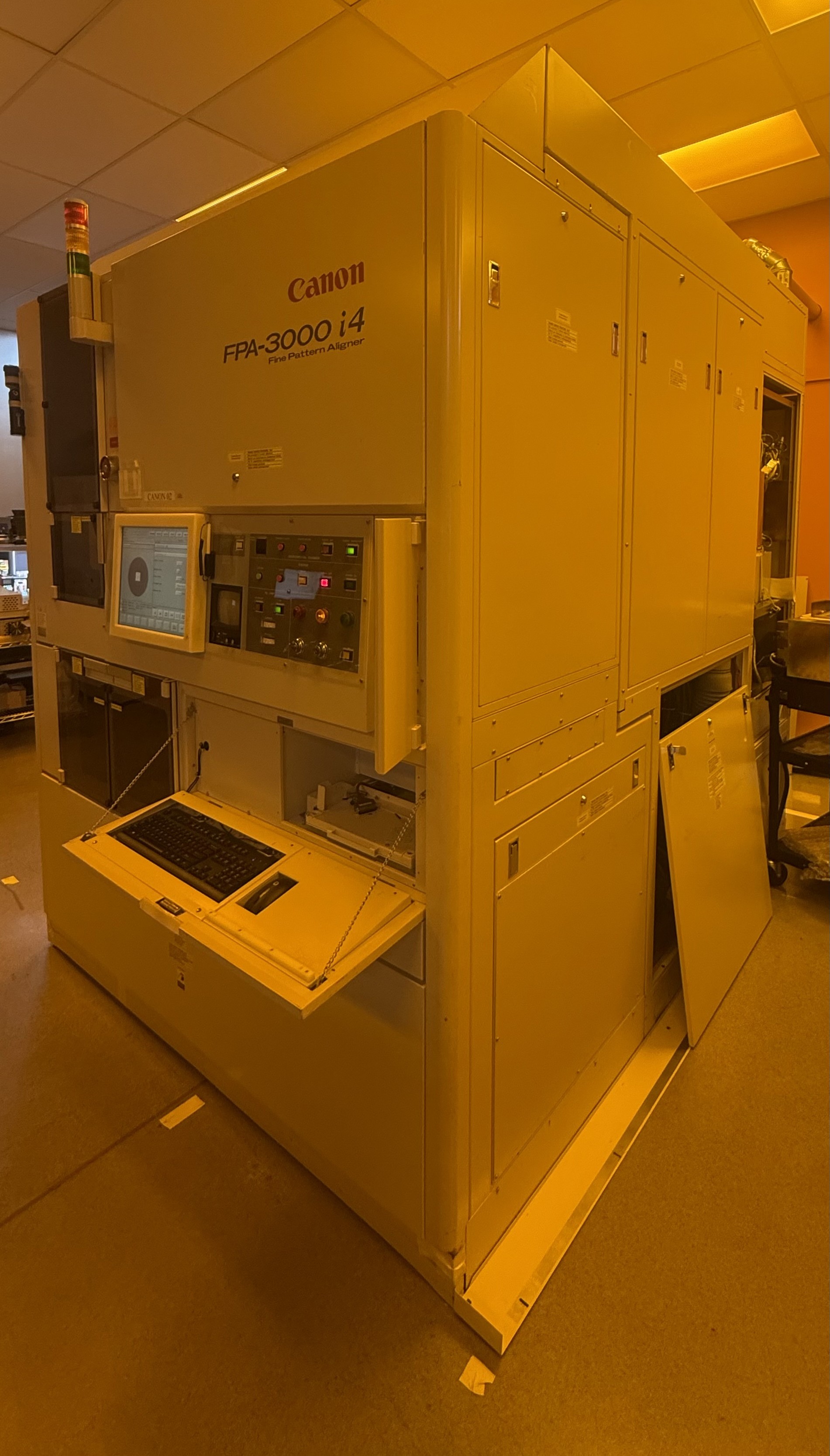

This refurbished tool is installed at our Lab in Blackwood, NJ, USA and is ready for operational demonstration. Recent performance data is available upon request.
Suitable for a variety of wafer types: Silicon, Silicon Carbide, Gallium Nitride, and all other Compound Semi substrates as well as clear wafers.
Specifications
Brand
Canon
Model
FPA-3000 i4
Model Year
1998
Category
Photolithography
Serial Number
605669
Illumination Source
365
Projection Ratio
5:1
Numerical Aperture
0.45–0.63
Field
22 x 22
Intensity (≥W/m²)
6,500
Uniformity (≤%)
1.0
Alignment Accuracy (<nm)
60
Stage Type
ABS
Reticle size (inches)
6
Resolution
350
Throughput (WPH 8")
59
Wafer Sizes
4", 6", 8"
Resolution (nm)
350
Configuration / Reconfiguration
What GCE can adapt on this system.
This isn't a fixed listing. We reconfigure the tool for the process you're actually going to run — a different wafer size, a different application, a substrate the previous owner never used. Every system is refurbished to OEM spec first; the configuration work is where we match it to your line.
Wafer size
reconfigure across
4", 6", 8"
Application
configured for
Canon FPA-3000 i4 Wafer Stepper
Compound-semiconductor substrates
SiC, GaN, GaAs, InP, sapphire, quartz, where the platform supports it.
